LED Panel
Home >> Products>> LCD/LED Panels >> LED Panel

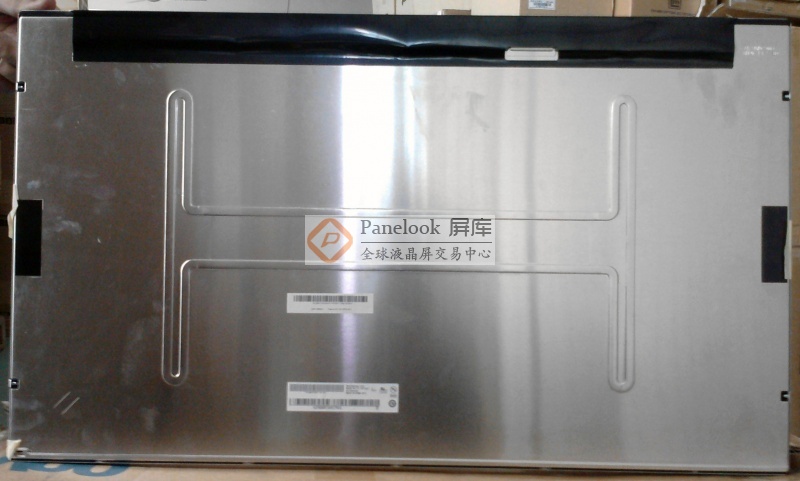

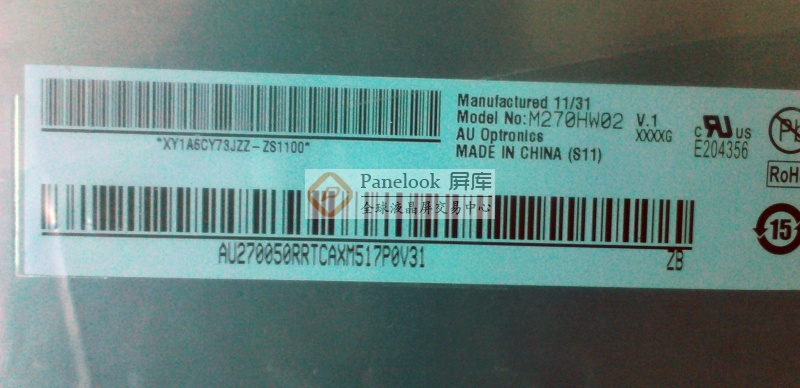

AUO LCD/LED Panel Screen AUO M270HW02 V1 M270HW02.1
Panel Brand :
AUO
Panel Model :
M270HW02 V1
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
27.0 inch
Resolution :
1920(RGB)×1080 , FHD
Display Mode :
MVA, Normally Black, Transmissive
Surface :
Antiglare, Hard coating (3H)
Brightness :
300 cd/m2 (Typ.)
Contrast Ratio :
5000:1 (Typ.)
Display Colors :
16.7M (8-bit)
Response Time :
7/5 (Typ.)(Tr/Td)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency :
60Hz
Lamp Type :
18S4P WLED
Signal Interface :
LVDS (2 ch, 8-bit)
Input Voltage :
5.0V (Typ.)
Please check more details of panel M270HW02 V1 ： http://www.panelook.com/M270HW02%20V1_AUO_27.0_LCM_parameter_13227.html
Download PDF specification of M270HW02.1 : http://www.vantron.net/download/M270HW02.1.pdf
