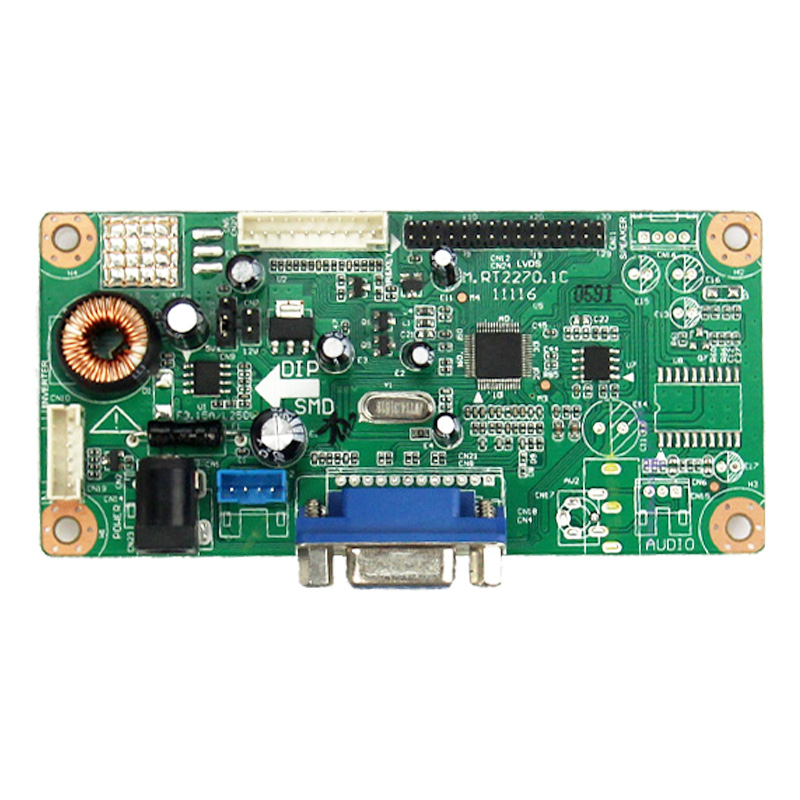

ROWA M.RT2270C.1 LCD Controller Board with VGA Input

1. GENERAL DESCRIPTION
M.RT2270C.1 is a monitor control board，The resolution is up to 1680x1050@75HZ. Its color reach
24bit potentially. H-Frequency signal range from 30 to 80 KHz, V-Frequency signal 60 to 75 Hz.

M.RT2270C.1 supports synchronize automatic detection and Dynamic Contrast Control, apply to Sync
Separator for extracting Hsync and Vsync.

2. STANDARD CONFIGURATION

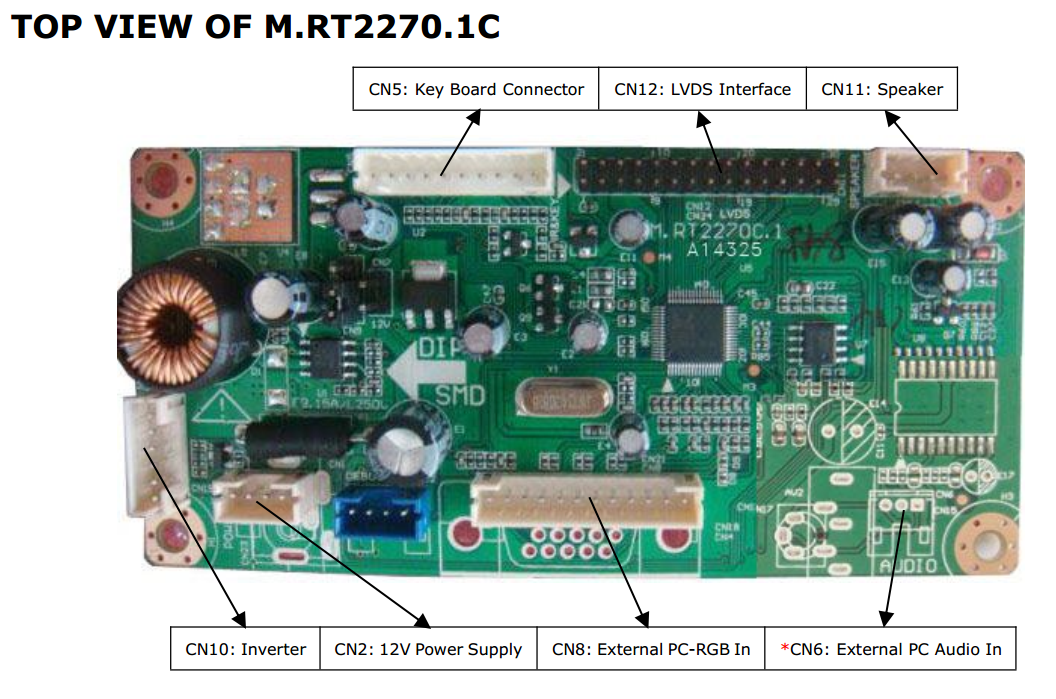

Standard Configuration 1

Features: VGA(Horizontal terminal), without PC AUDIO IN
Main chipset:RTD2270CLW-CG
Terminal Functions: VGA(Horizontal terminal), without PC AUDIO IN
Power Supply:External Power Supply，Inside Diameter of Power Terminal is 2.0mm
Power to Panel:3.3V, 5V, 12V Reserved (Power to Panel switch to 5V)
Special Requirements: CN3/4PIN-2.0mm Blue Interface (Reverse)

Button Types : Ground Key Interface

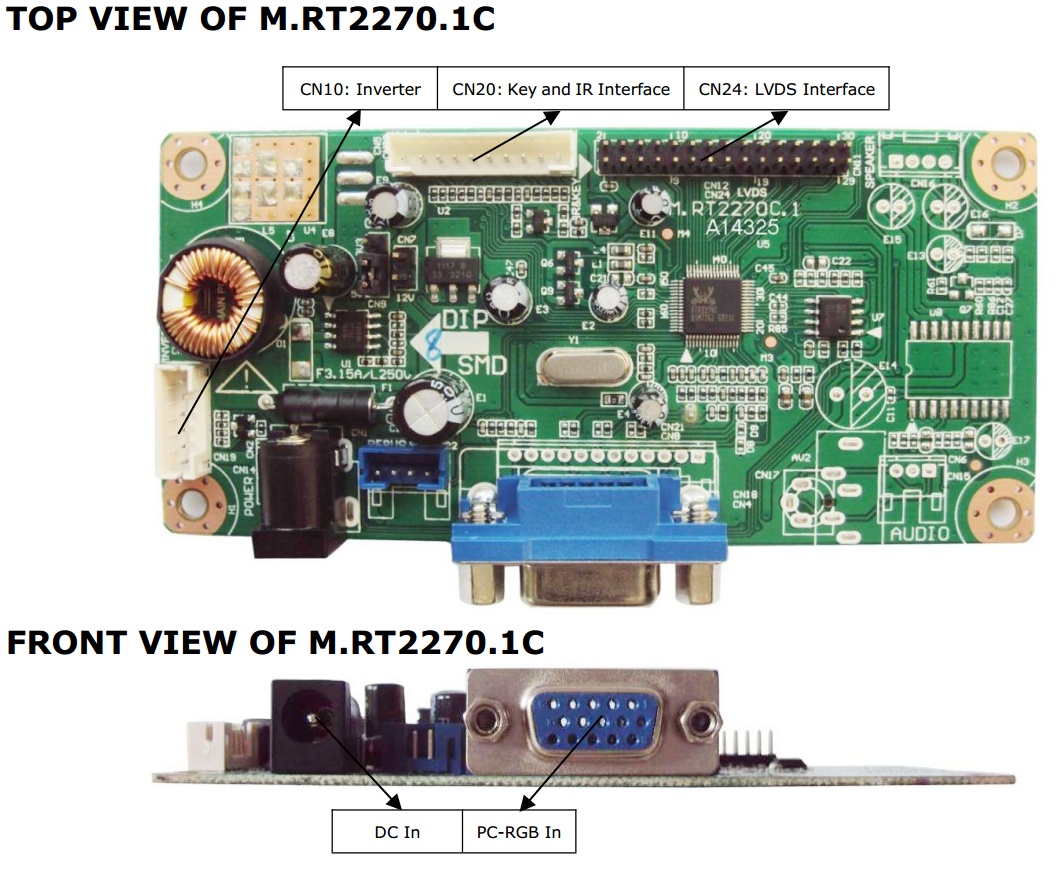

Standard Configuration 2

Features :VGA(Vertical terminal), without PC AUDIO IN
Main chipset: RTD2270CLW-CG
Terminal Functions: VGA(Vertical terminal), without PC AUDIO IN
Power Supply: External Power Supply，Inside Diameter of Power Terminal is 2.0mm
Power to Panel: 3.3V, 5V, 12V Reserved (Power to Panel switch to 5V)
Special Requirements: CN3/4PIN-2.0mm Blue Interface (Reverse)
Button Types: Ground Key Interface

3. FEATURES
MAIN CHIP RTD2270L
PANEL
Interface Single/Dual LVDS
Resolution 1680x1050@75HZ
POWER
Requirement 12V DC, 12V (Built in), 12V/5V (Built in)
To Panel 3.3V, 5V,12V
Management Low power consumption mode, standby
standby <1W
OSD LANGUAGE
Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish,
Portuguese, Japanese, Korean
KEY FUNCTION POWER,MENU,VOL+,VOL-,AUTO/EXIT

4.PCB Dimension
