LCD Monitor Board
Home >> Products>> LCD/LED Controller Board >> LCD Monitor Board
Support Resoliton: Max 1920x1200
Input: HDMI
Panel signal Input: eDP

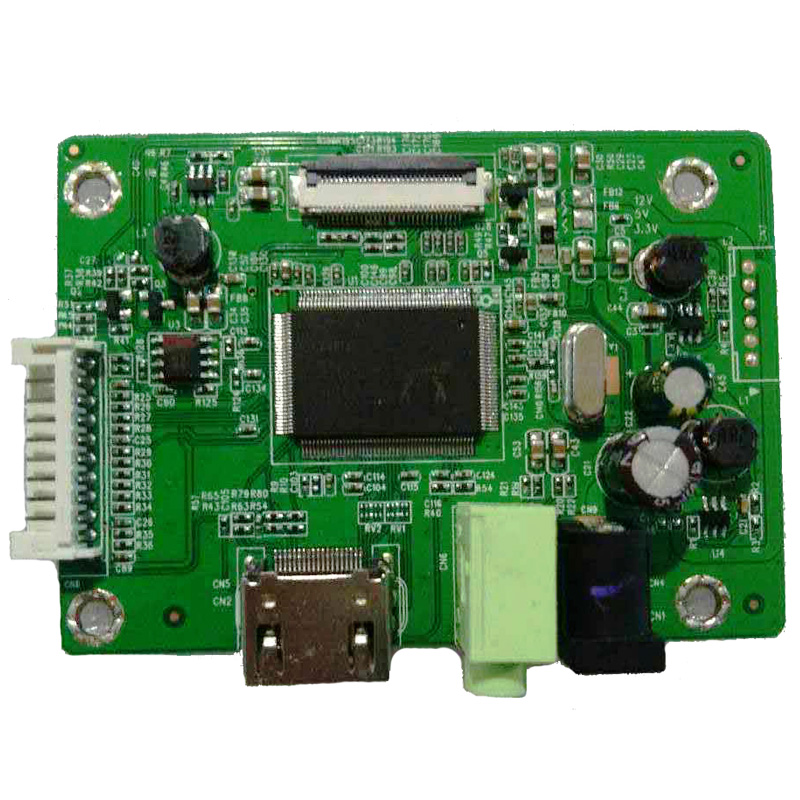

Product description: RTD2556_eDP_1H HDMI Monitor Controller Board with EDP Output
|
Chipset |
RTD2556-CG |
|
Input |
HDMI |
|
Output |
Panel interface 0.5mm distance 30pin FFC |
|
Output |
Earphone audio |
|
Power |
Input power 12V DC |
|
Panel Voltage |
3.3V/5V/12V available |
|
Standby Power |
＜0.3W |
|
OSD Language |
Chinese,English,etc. |
|
VGA Mode Table |
|||
|
Mode |
Resolution |
Horizontally Frequency (KHz) |
Field Frequency (Hz) |
|
WUXGA |
1920*1200 |
74.556 |
60 |
|
WUXGA |
1920*1080 |
67.5 |
60 |
|
UXGA |
1680*1050 |
59.8 |
60 |
|
WXGA+ |
1440*900 |
55.5 |
60 |
|
SXGA |
1280*1024 |
63.5 |
60 |
|
XGA |
1024*768 |
48.4 |
60 |
|
SVGA |
800*600 |
37.9 |
60 |
|
VGA |
640*480 |
31.5 |
60 |
|
DOS |
720*400 |
31.5 |
70 |

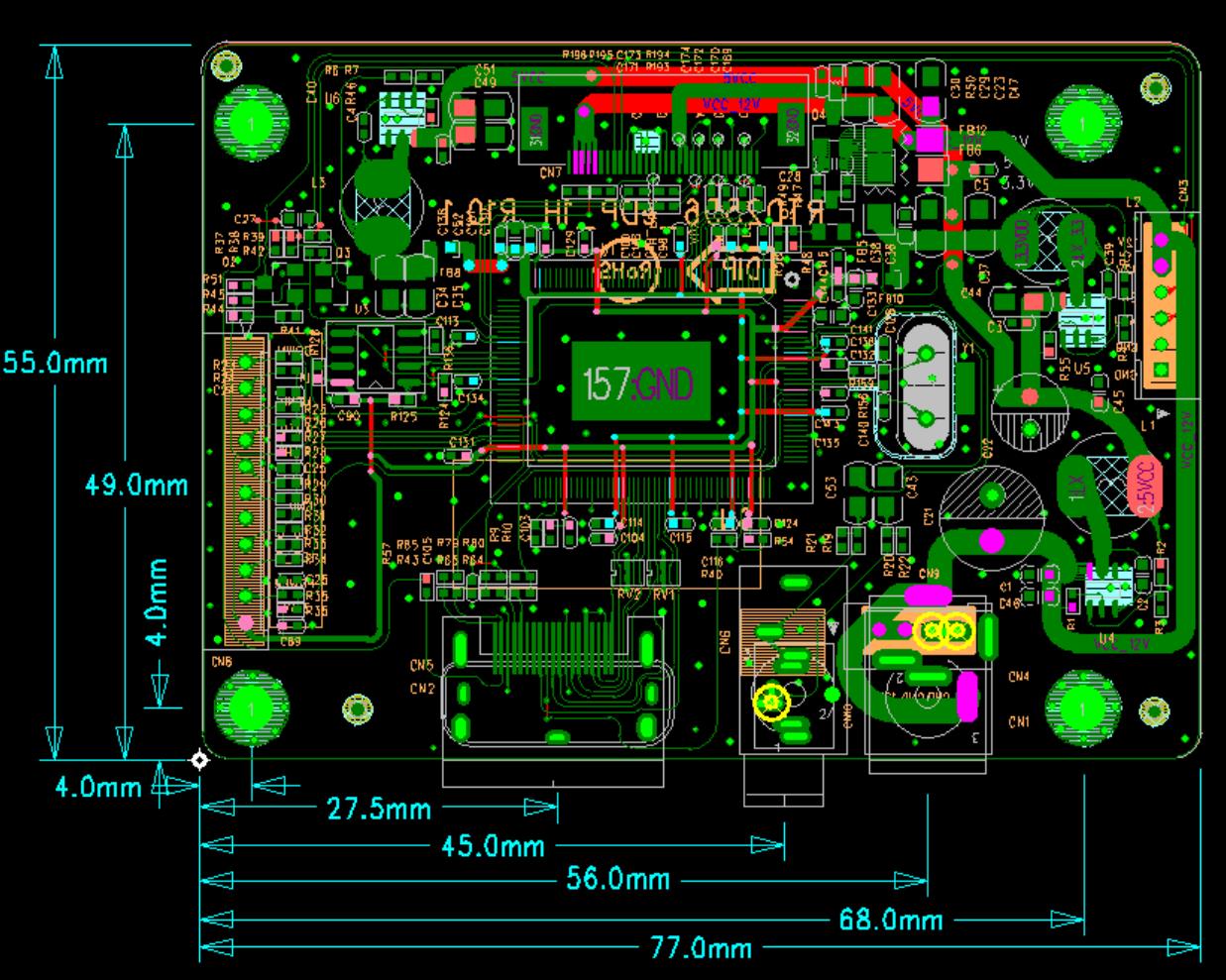

Board Size:
