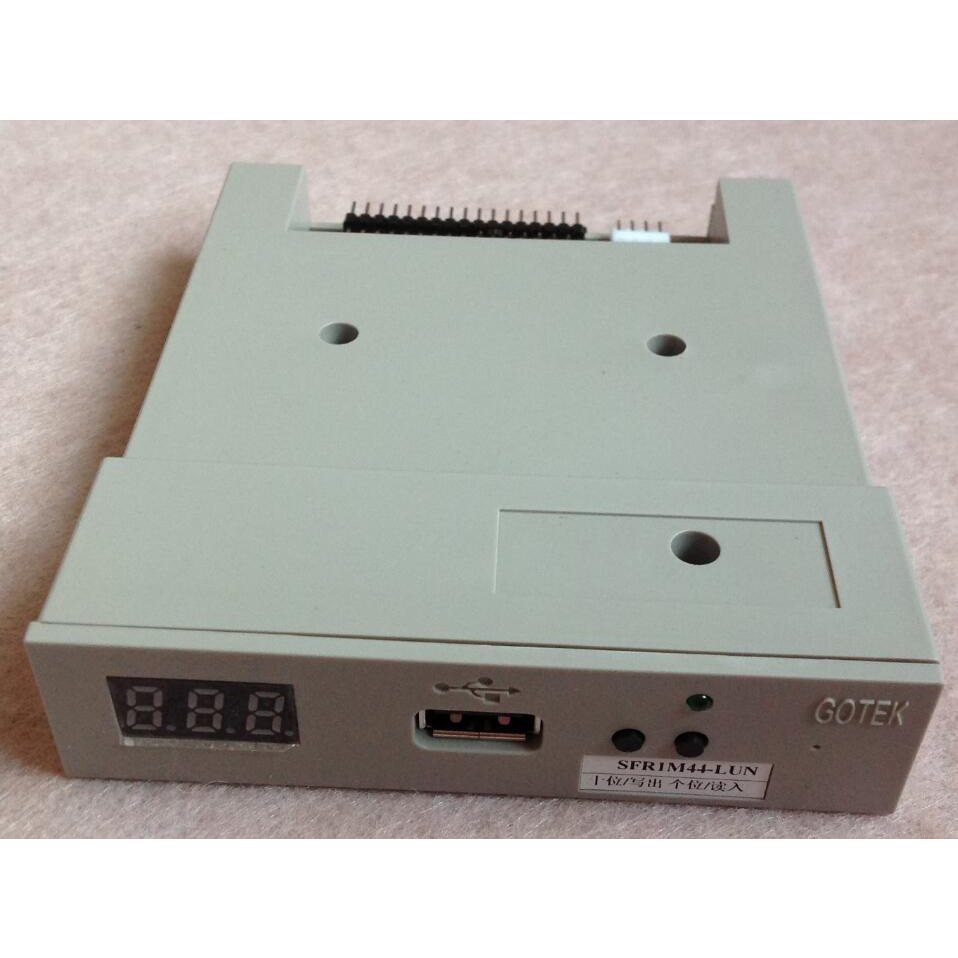

SFR1M44-LUN GoTek Floppy to USB emulator for MULLER3 STAUBLI-JC5 BONAS Machine STOLL Flat Knitting Machine

Feature:

• Plug and play
• High security data protection
• Easy to install and user-friendly
• The USB stick used is FAT32
• Data in root directory and 99 folders can be searched
• Long file name and 4-level directory in 99 folders supported
• A built-in memory used to s tore data and convert format between FAT16/32 and FAT12, data retains even power down
• Great for industrial control equipment with 1.44MB floppy drive

 Specification:

• Model: SFR1M44-LUN
• Voltage: 5V DC
• Interface: USB port, 4 pin power plug (Power), 34 pin plug (Standard floppy drive)
• Housing Material: ABS
• Size (L x W x H): Approx. 4.8 x 4.1 x 1 inch / 12.3 x 10.2 x 2.5cm
• Color:Gray

 Compatible with industrial control equipment with 1.44MB floppy drive (not support jumper wire function):

• SHIMA SEIKI SES  Series Flat Knitting Machine
• STOLL  Flat knitting Machine
• MULLER3  STAUBLI-JC5  BONAS Machine
• for MITSUBISHI FA  Machine
• Korg E100 E50 Keyborad

 Note:

• Only 1.44MB data can be stored into built-in memory and accessed by the system at one time through FDD interface
• If total capacity of data in root directory or folder exceed 1.44MB, all data is separate into blocks, all blocks can be searched by press the [IN] button once again

Package Includes:

• 1 x USB Emulator
• 4 x Crews
